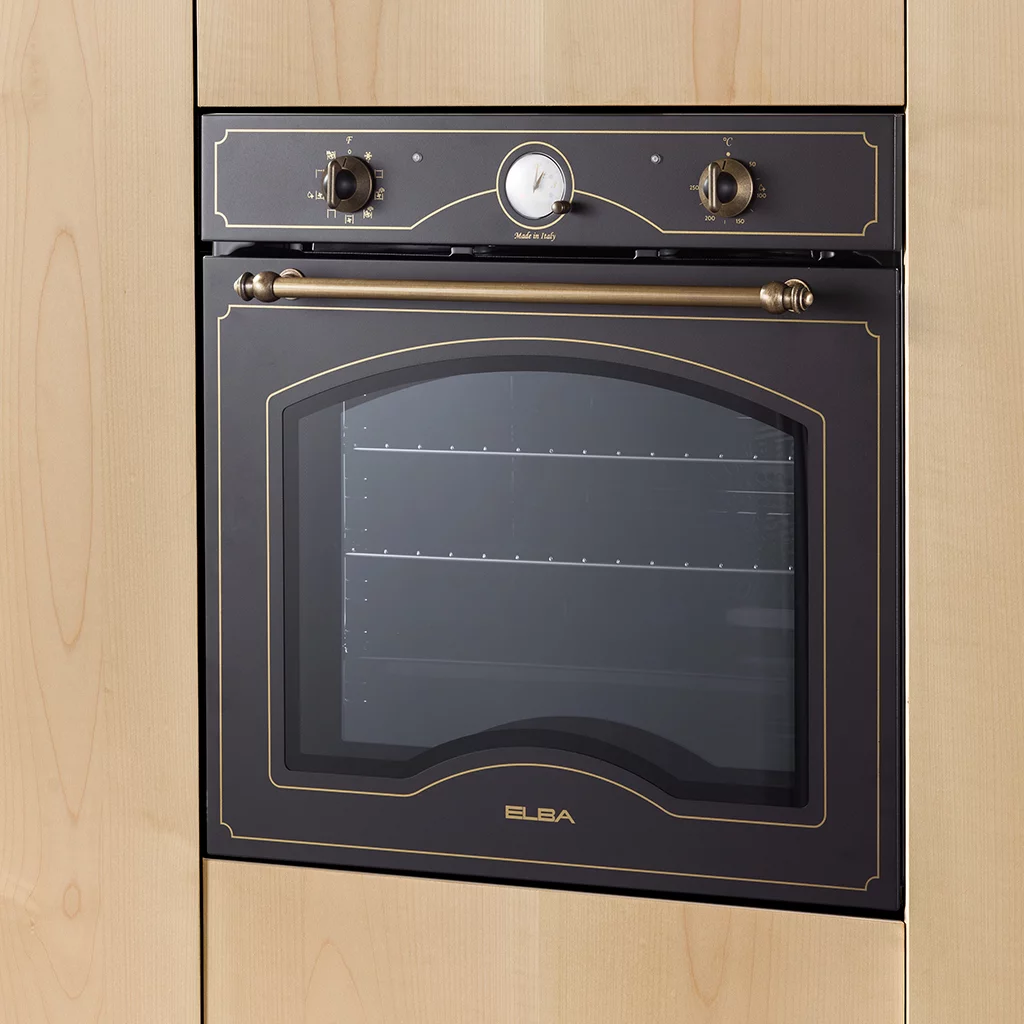

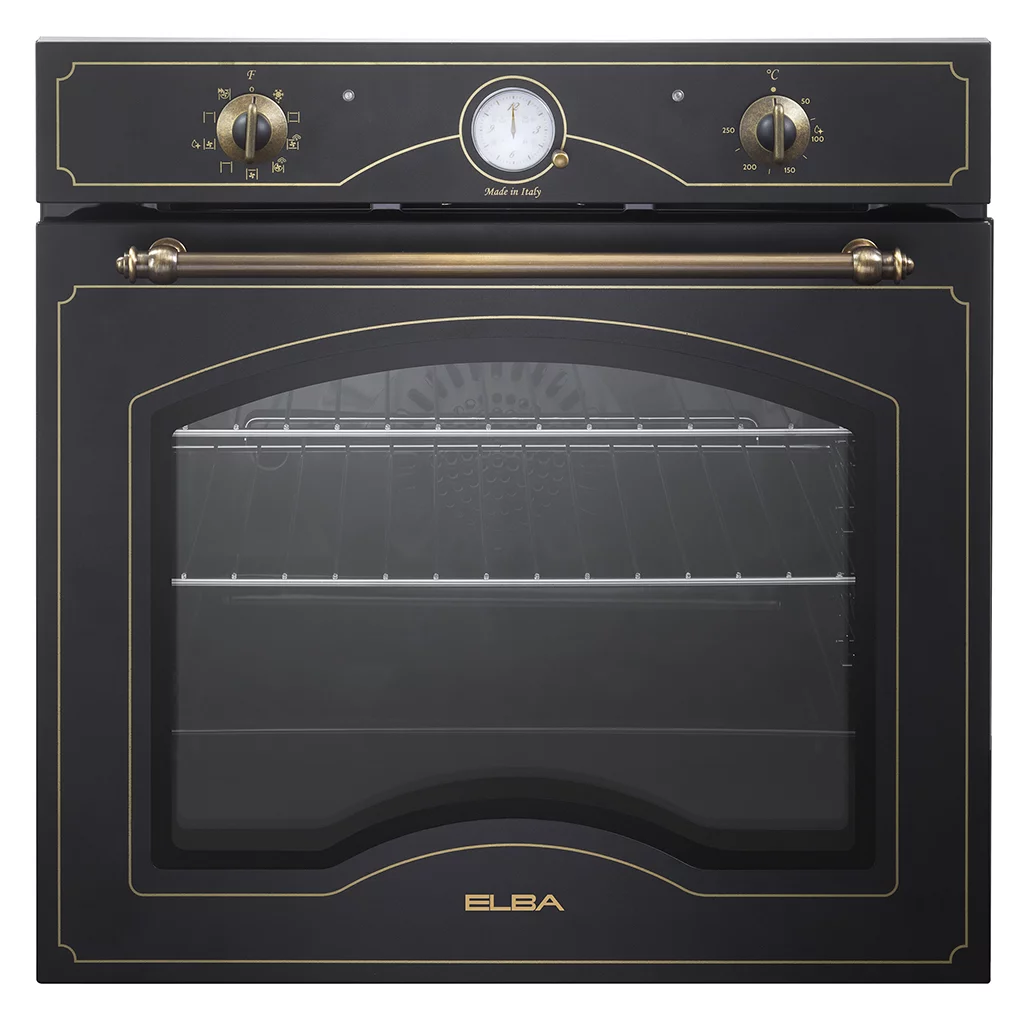

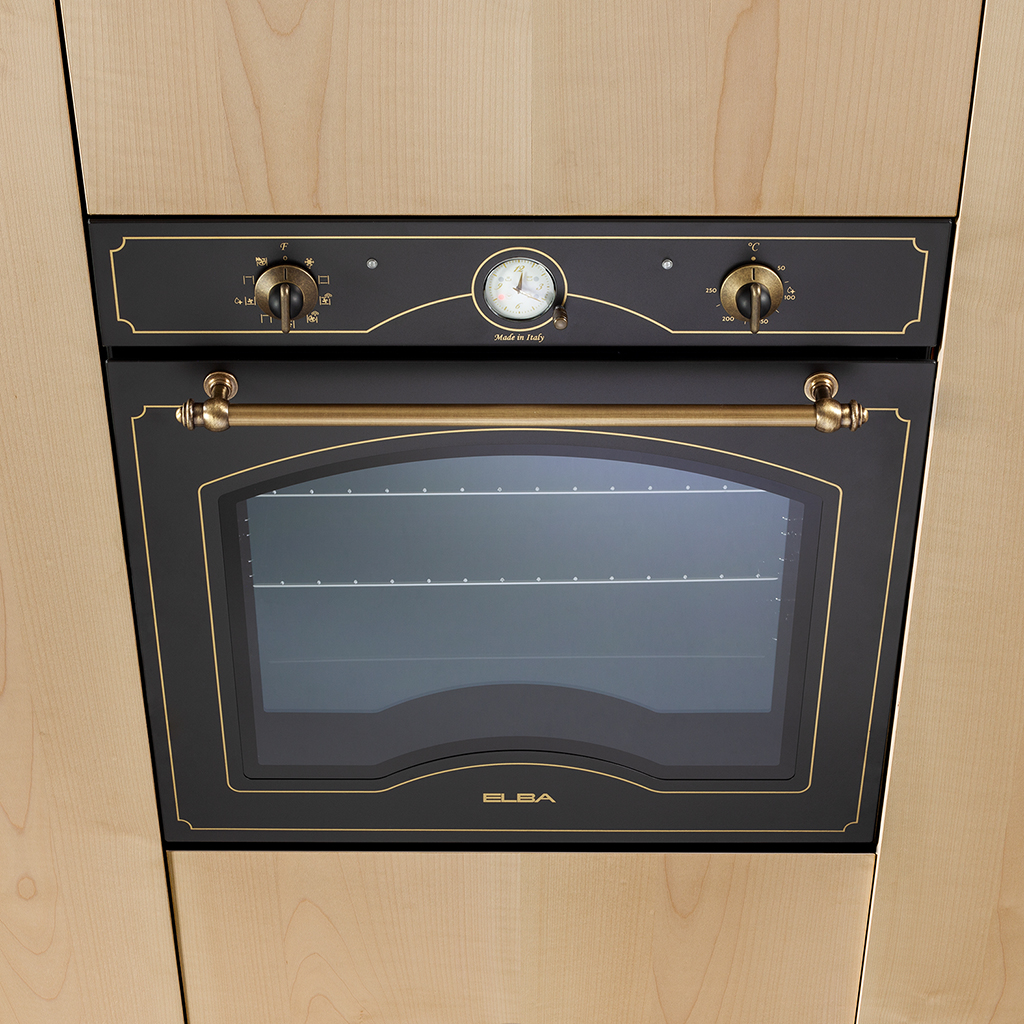

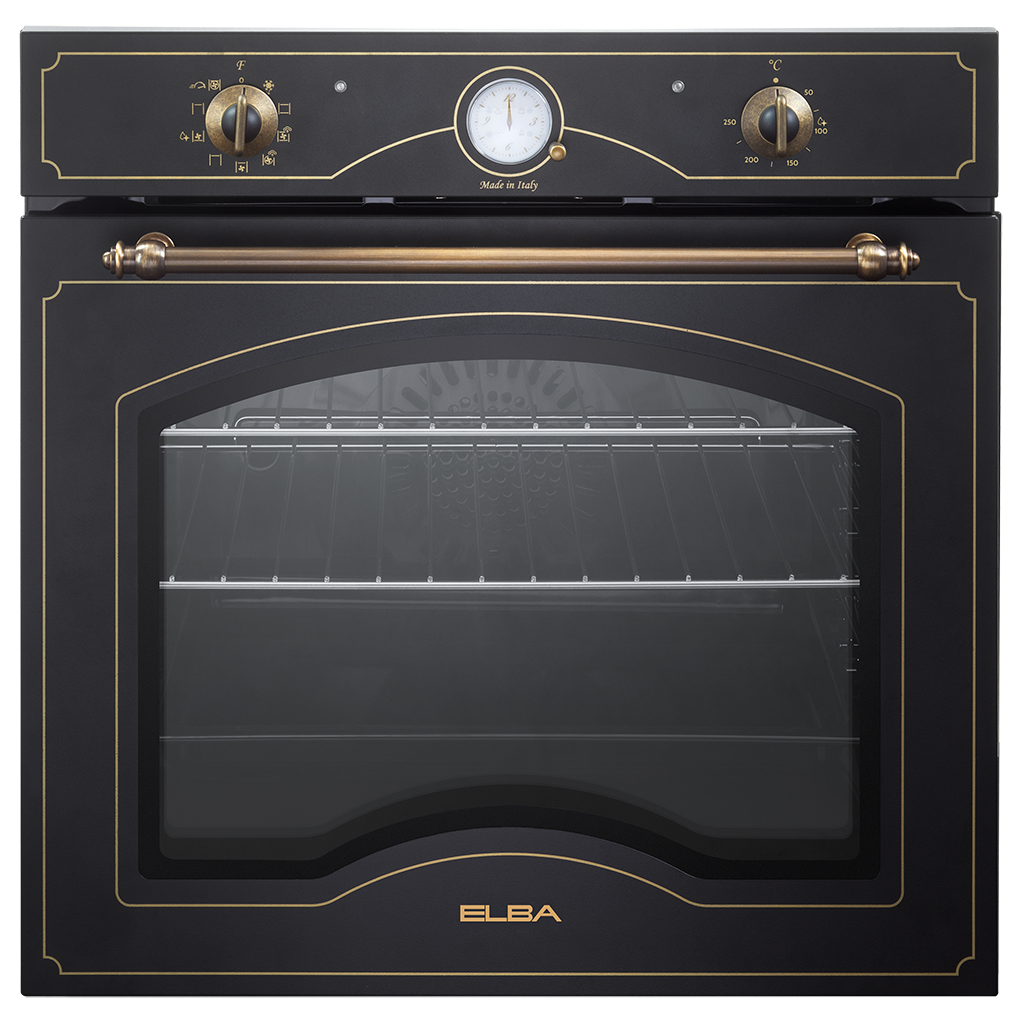

Country Electric multifunction oven

ECM 9 LAN
Features

Electric multifunction oven 9 functions
74 net liters cavity 7 levels side racks ​
Easy steam function ​
Idroclean function ​
Booster fast preheating ​
True fan cooking​
Analogic start/end of cooking​
Brass finishing knobs and handle ​
Double glass door with removable inner glass​

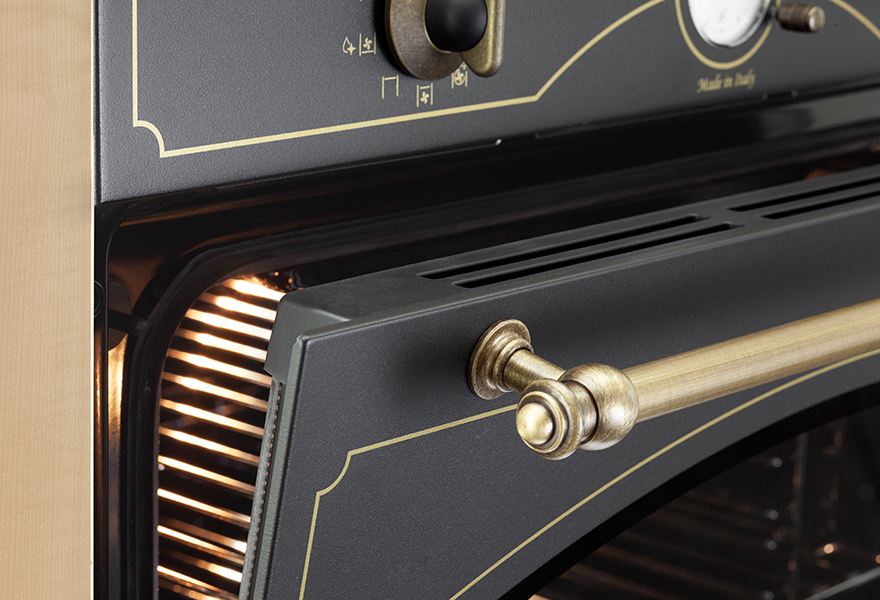

Open door light​
1 light​
Cooling fan​

Accessories

2 flat shelves​
1 tray

Easy Steam

The special Easy Steam function allows the water to evaporate inside the oven cavity, improving and speeding up the cooking process. The nutritional properties of foods thus remain intact, preserving the flavors, appearance and texture of the dishes. In this way, Easy Steam function helps the food stay cooked better than the same cooking without adding moisture.

Leavening 40°C

Thanks to this special function the dough maintains its characteristics, allowing optimal leavening.

Special function Pizza 300°C

The exclusive special function Pizza with its 300°C allows you to cook your pizza perfectly as in a real professional oven.
The upper heating element and the fan turn on. The heat coming from the bottom is diffused by forced convection.

True fan cooking

With the heating element located around the fan, you can cook many kinds of food on different levels without mixing flavors and smells. This function is great for foods that need to be well cooked but at the same time needing to stay tender and moist.

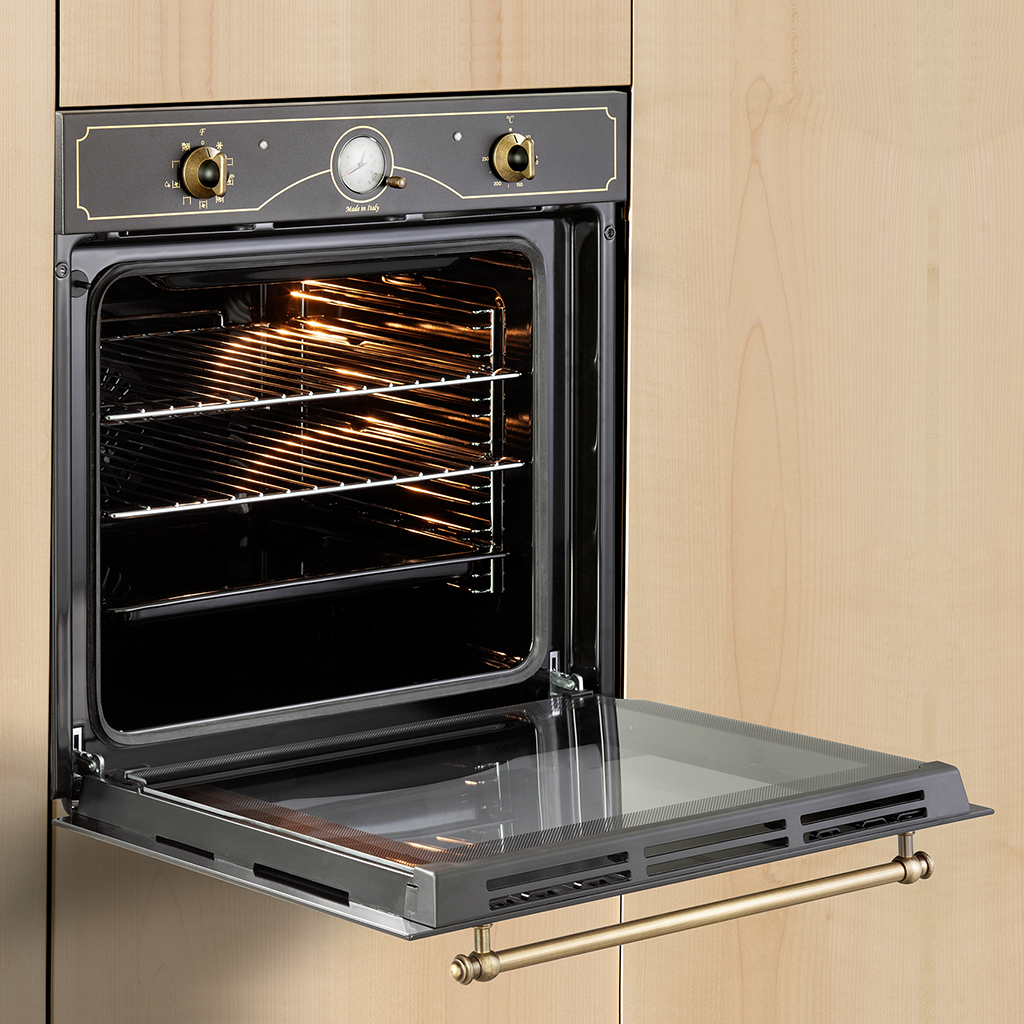

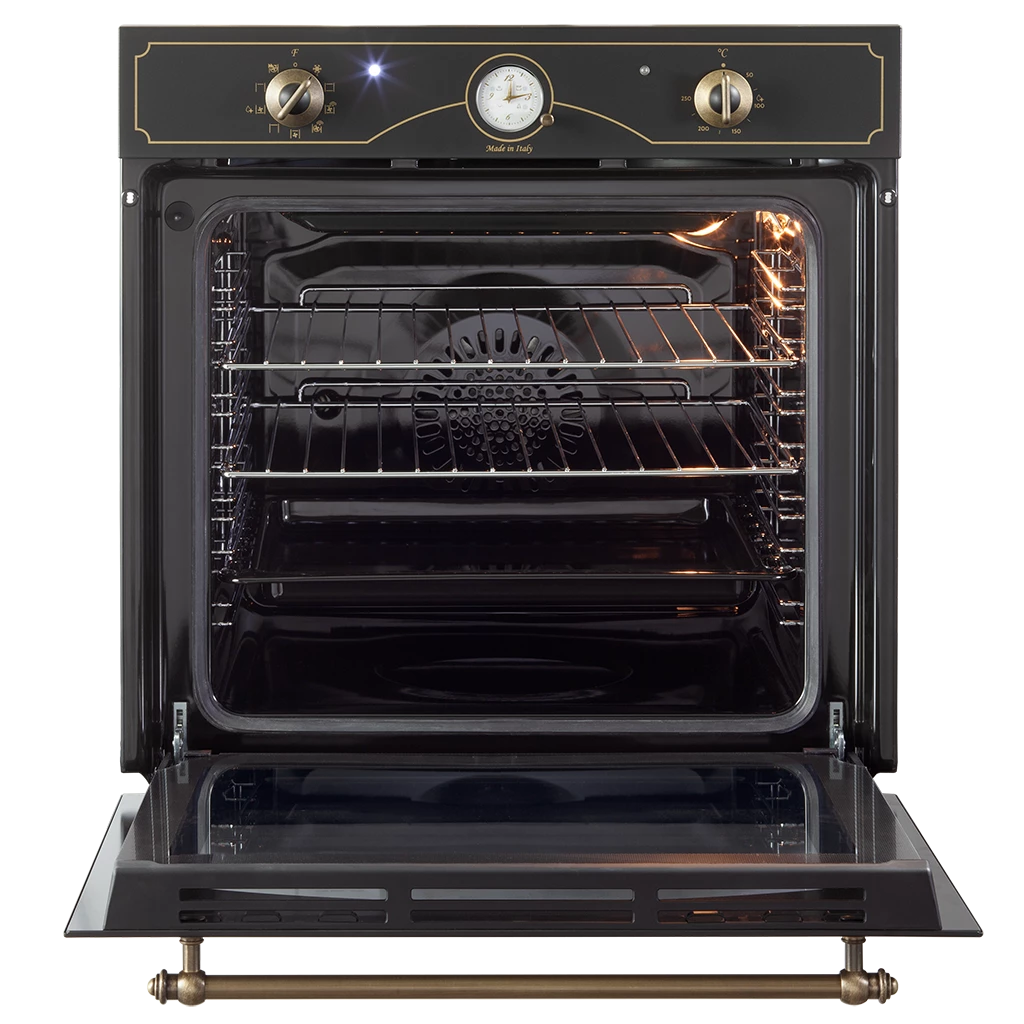

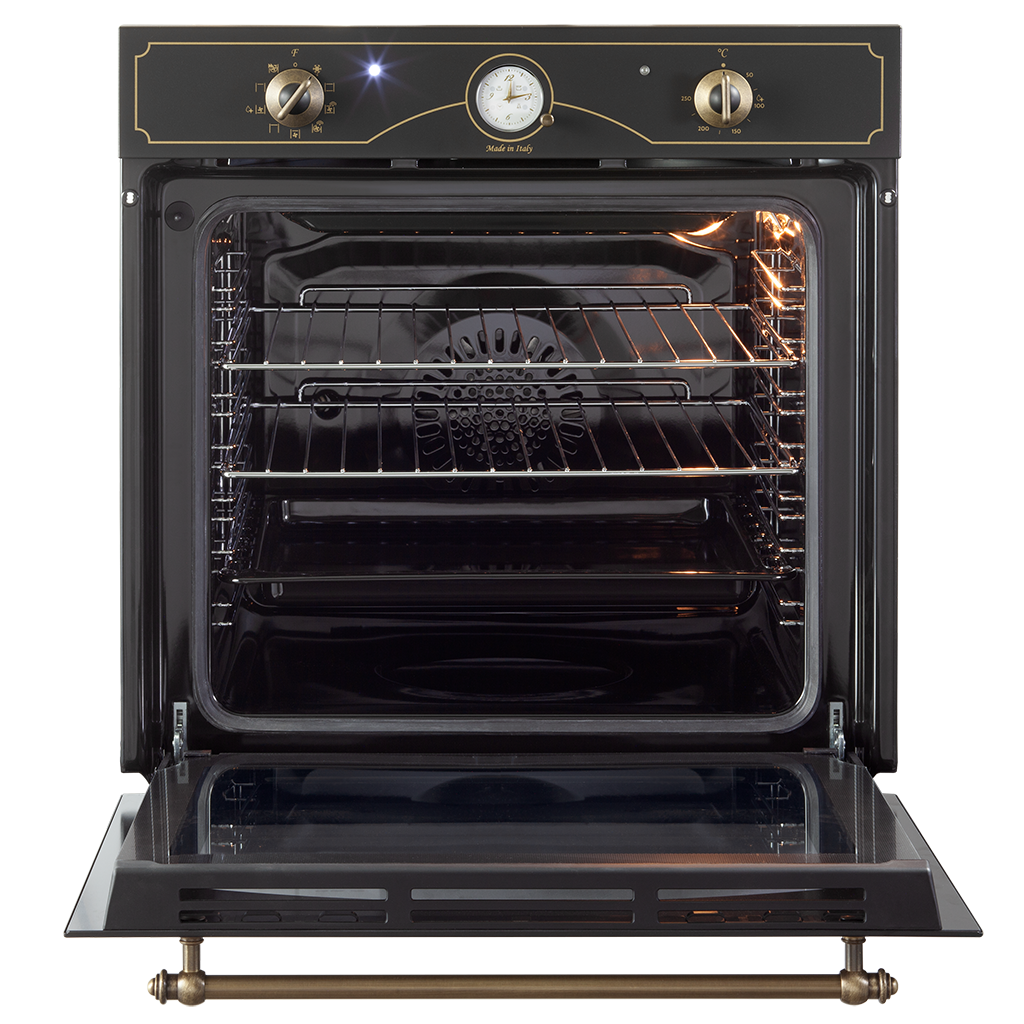

Maxi space cavity

74 usable litres (86 gross liters) with 7 levels with easier to remove side racks for your multilevel preparations.

Idroclean

Without using any type of detergent, this function helps remove the dirt inside the oven thanks to the moisture generated by the water warming at 80-90°C.

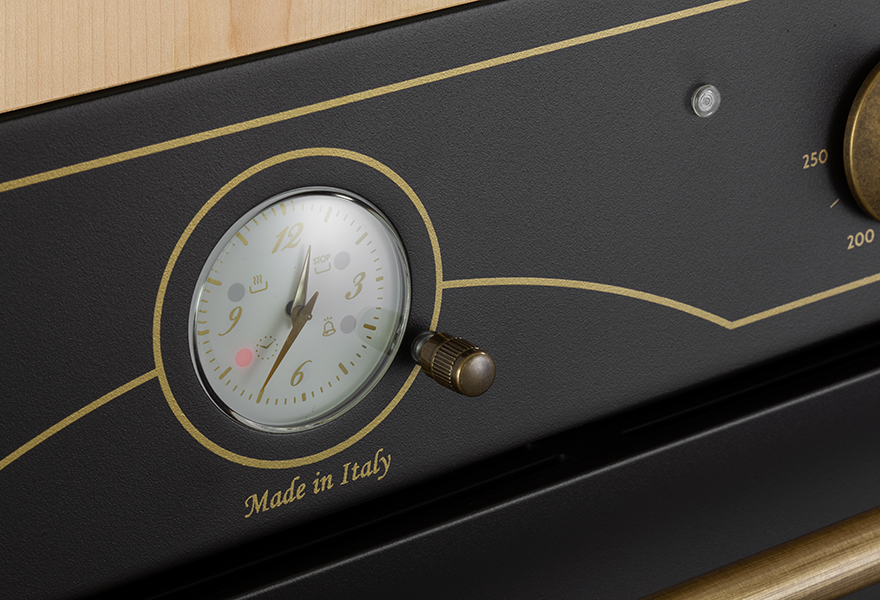

Analogic programmer

Analogic start/end of cooking programmer in country style with three functions: 12-hour analog clock, minute minder and automatic cooking.

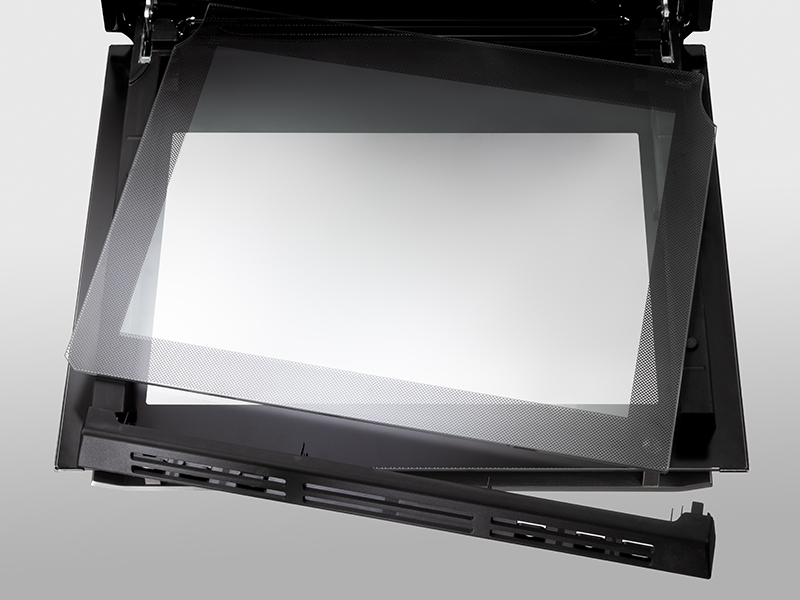

Easy to remove inner glasses

To assist with cleaning, Elba ovens doors are fitted with easy to remove inner glasses.
Just remove the glass retainer by pushing the side clips and lift up the inner glasses.

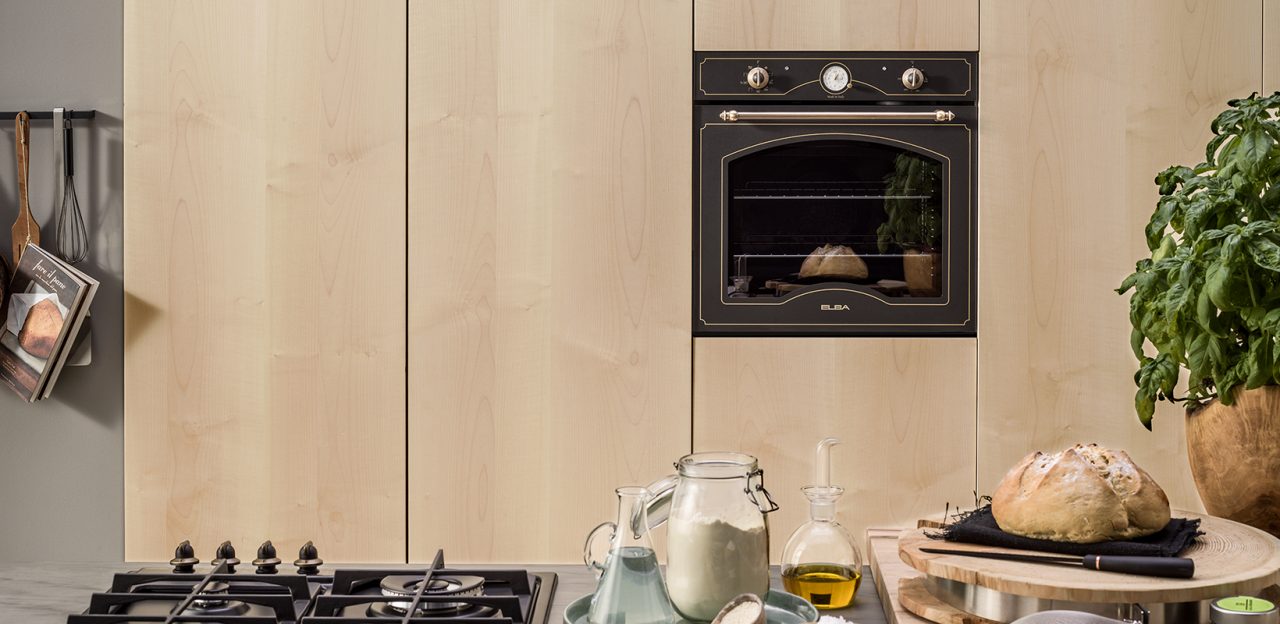

Country aesthetic

The country aesthetic is enhanced by the characteristic knobs, all rigorously in antiqued brass; the gold-colored serigraphies reproduce an old-fashion design in balance between tradition and innovation.

Aesthetics

  • Line

    Country

  • Colour

    anthracite

  • Other colours

    • Installation mode

      buit-in

    Overall dimensions

    • Platform Width (cm)

      60

    • Platform height (cm)

      60

    • Width (mm)

      595

    • Height (mm)

      595

    • Built In Width (mm)

      560

    • Built In Depth

      550

    • Height Base Installation

      600

    • Height Column Installation

      590

    Control Zone

    • Control Type

      knobs

    • Knobs finishing

      brass finishing

    • Controls position

      front

    • Programmer

      start/end cooking analogical

    • Display

      no

    • Programmer controls

      knob

    Door

    • Handle

      brass finishing

    • Design

      painted frame

    • Glass door

      trasparent

    • Glass number

      2

    • Removable inner glasses

      1

    • Soft Closing Door

      1

    Oven

    • Fuel

      electric

    • Cooling fan

    • Safety devices

    Cavity

    • Type

      electric multifunction

    • Net Volume

      74

    • Shelves Support

      1

    • Cavity Type

      side racks

    • Thermostat

    • Circular element

      1

    • Grill element fuel

      electric

    • Number of functions

      9

    • Functions

      • oven light
      • defrosting
      • fan assisted cooking
      • true fan cooking
      • fan assisted grilling
      • electric grilling
      • base-heat fan assisted
      • convection cooking
      • top-heat true fan cooking
    • Special functions

      • easy steam
      • idroclean
      • turbo
      • true fan cooking
    • Fan

      1

    • Oven light (num)

      1

    • Cleaning system

      idroclean

    Other

    • Made in

      Italy

    Electric connection

    • Total electric absorption (W)

      2900

    • Cable

    Accessories

    • Accessory 1

      tray

    • Accessory 2

      2 flat shelves

    Model:

    ECM 9 LAN

    Overall dimensions (W x H) mm:

    595x595
