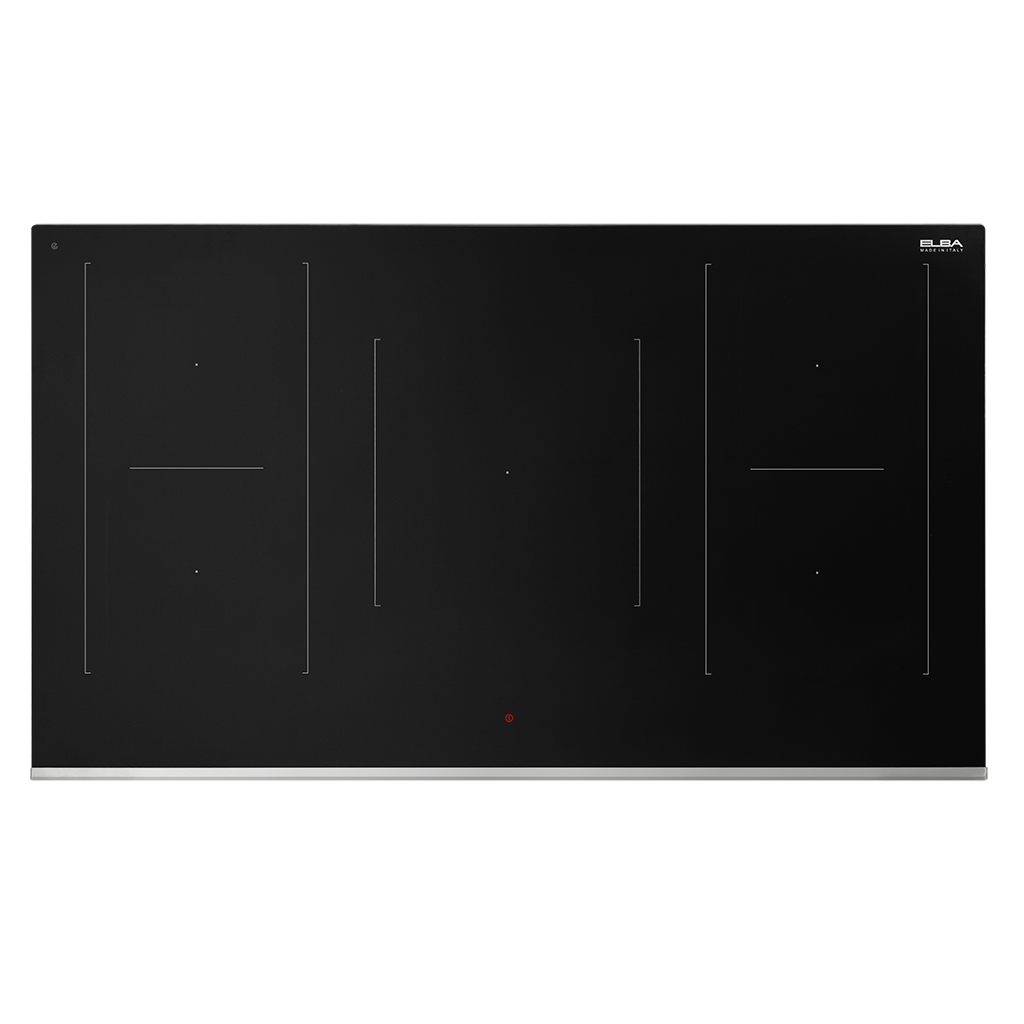

Elio Induction hob

EIN 905 XF

Features

Black ceramic glass hob
5 induction zones
2 Full bridge zones
Chef cook function
Automatic pan detection
Melting
Booster and Double Booster
Snap-in easy installation
Power management from 1.4 kW
Total electric absorption: 10400 W
Cable included

Tension: 220-240 V ac; 380-415 V 3N ac; 380-415 V 2N ac

Features

Full Bridge Zones

Elba Full Bridge zone, available for induction hobs, allows you to combine two cooking areas into a single extended one, suitable for both large pans and simultaneous cooking.
The innovative rectangular shape of the inductive plates allows you to maximise efficiency over the entire cooking area.

Chef Cook Function

This special function, inspired by Italian chefs, allows the induction hob to be set to specific temperatures and keep them constant during cooking. This makes it possible to produce elaborate preparations with the results of a true chef.

Aesthetics

Line
Elio
Colour
black
Installation mode
built-in

Overall dimensions

Platform Width (cm)
90
Width (mm)
900
Depth (mm)
520
Cut Out Width
840
Cut Out Depth
480
Cut Out Height
47

Cooktop

Material
ceramic glass
Fuel
elettric
Cooking zone type
induction
Cooking zone number
5
Induction bridge zone
2
Safety devices
Snap In Easy Installation
Special functions
- key lock
- pause
- booster
- easy start
- melting
- chef cook
- full bridge
- residual heat indicator
- “fast heating” function

Control Zone

Control Type
touch control
Controls position
front
Programmer
minute minder, end of cooking
Display
Programmer controls
touch control

Other

Made in
Italy

Electric connection

Total electric absorption (W)
10.400
Cable

Model:

EIN 905 XF

Overall dimensions (W x D) mm:

900x520

Click on a link to download your required PDF

User Manual

User-installation-instructions-induction-900

Product sheet

ELBA HOB EIN 905 XF – INDUCTION
