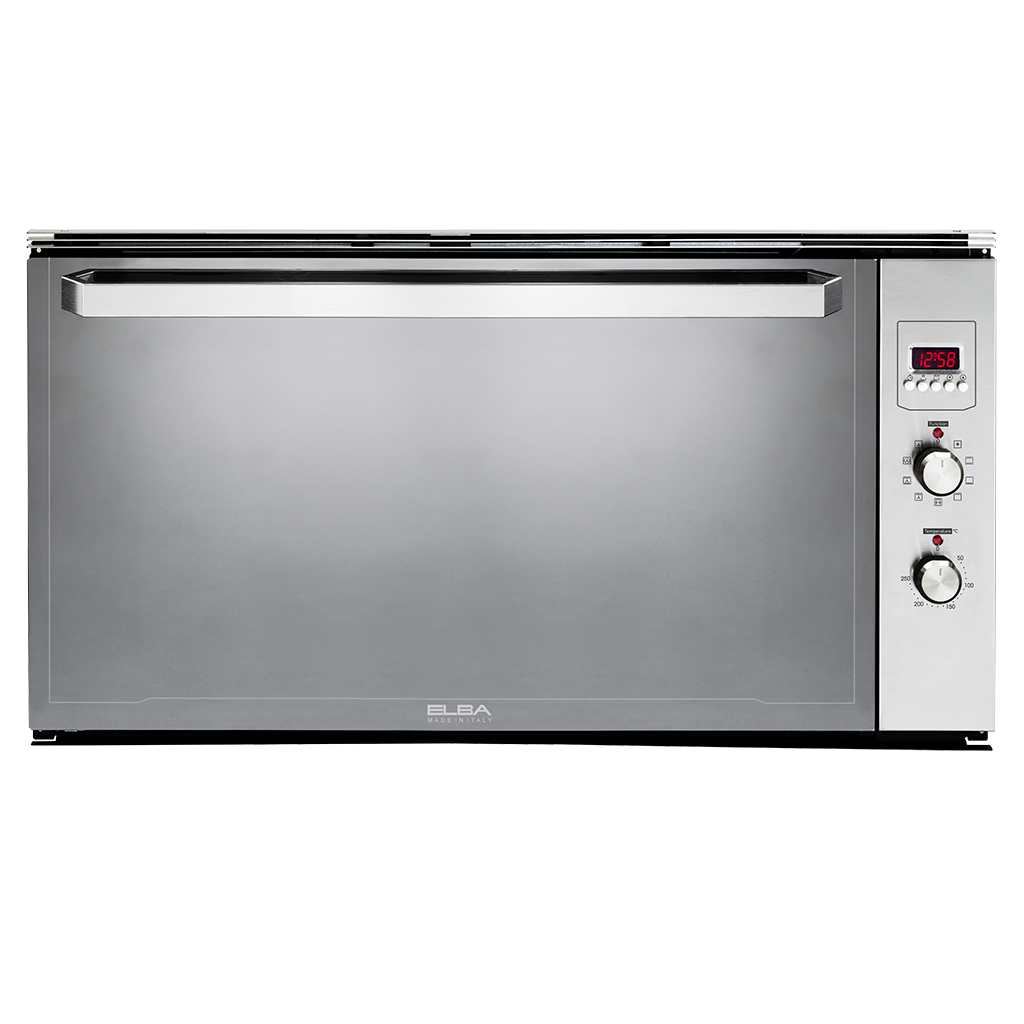

Elio Electric multifunction oven

ELIO 934

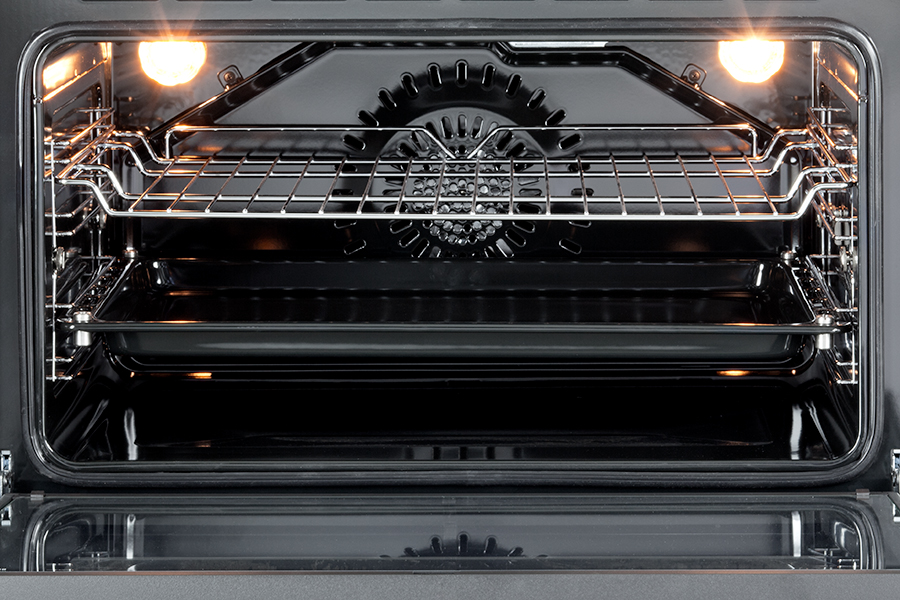

Maxi cavity

The maxi cavity of 83 net volume litres and 103 gross volume litres means more space to cook more dishes at the same time or bigger dishes, due to the greater number of cooking levels compared to a traditional oven.

More flexy space with shaped shelf

It’s possible to use different levels of cooking shelves due to the bigger cavity dimensions which make the positioning of trays and shelves more flexible.

Aesthetics

Line
Elio
Colour
stainless steel, black glass
Installation mode
buit-in

Overall dimensions

Platform Width (cm)
90
Platform height (cm)
48
Width (mm)
896
Height (mm)
478
Built In Width (mm)
860
Built In Depth
550
Height Base Installation
480
Height Column Installation
480

Control Zone

Control Type
knobs
Knobs finishing
brushed metal
Controls position
sideward
Programmer
start/end cooking electronic
Display
Programmer controls
buttons

Door

Handle
brushed metal
Design
full glass
Glass door
mirrored
Glass number
2
Removable inner glasses

Oven

Fuel
electric
Cooling fan

Cavity

Type
electric multifunction
Net Volume
87
Shelves Support
side racks
Cavity Type
side racks
Thermostat
Circular element
1
Grill element fuel
electric
Functions
- oven light
- convection cooking
- top-heat only
- base heat only
- rotisserie
- true fan cooking
- defrosting
- fan assisted grilling
- fan assisted cooking
Special functions
- rotisserie
- true fan cooking
Fan
1
Oven light (num)
2
Cleaning system
catalytic panels

Other

Made in
Italy

Electric connection

Total electric absorption (W)
3050
Cable

Accessories

Accessory 1
tray
Accessory 2
shaped shelf
Accessory 3
rotisserie kit

Model:

ELIO 934

Overall dimensions (W x H) mm:

896x478

Click on a link to download your required PDF

Installation diagram

90 cm ovens installation diagram

Instruction manual

elba-elio-instruction-manual-elio-934
