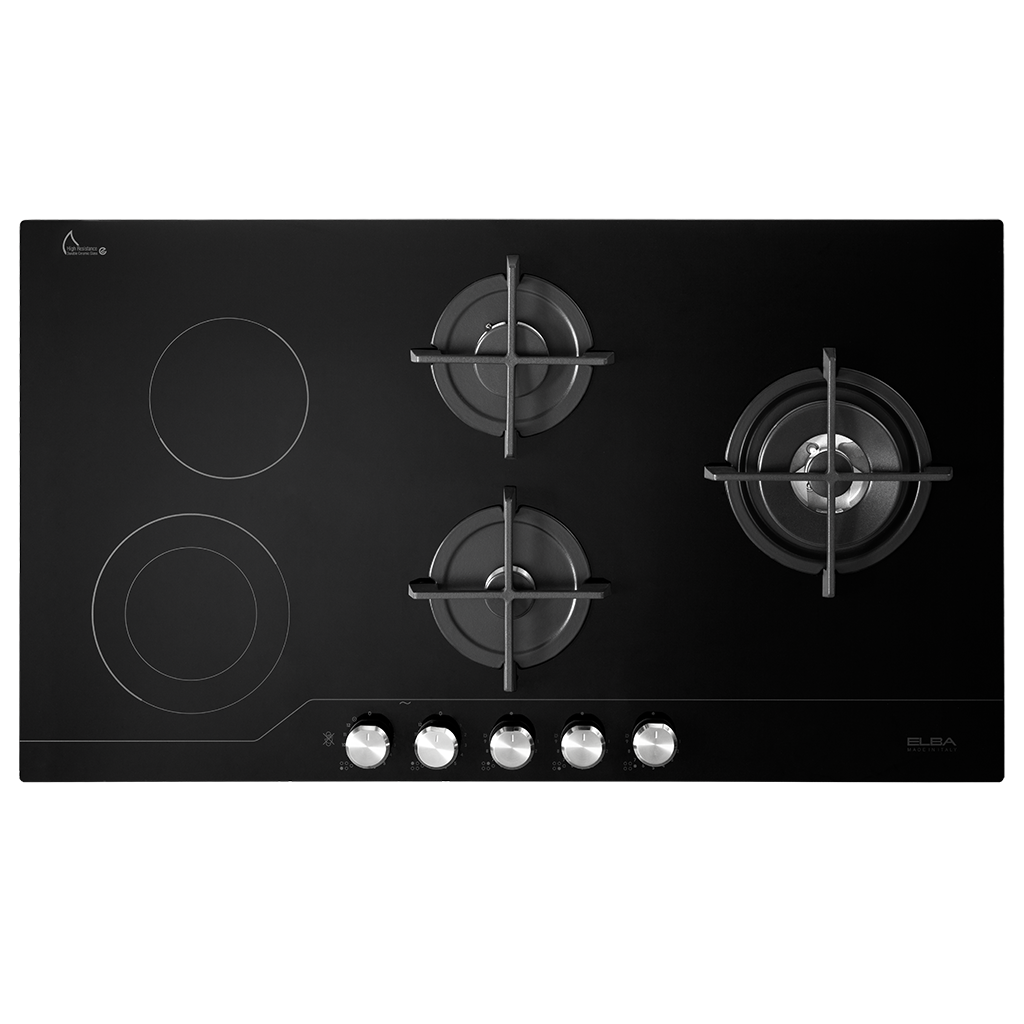

Elio Mixed hob

ELIO EN95-567 CG

Features

90 cm vitroceramic glass hob
3 gas burners including 1 double ring wok burner
2 ceramic radiant plates including 1 double zone
Precision Control flame select system
2 ceramic radiant plates including 1 double zone
cast iron pan supports and cast iron wok stand
regulation G30
cable included

Features

Precision Control

This flame select system allows to setting of the flame power choosing among 9 levels based on the kind of preparation. From level 1 for the melting function to level 9 for the fast boiling.

Aesthetics

Line
Elio
Colour
black
Installation mode
built-in

Overall dimensions

Platform Width (cm)
90
Width (mm)
900
Depth (mm)
510
Cut Out Width
840
Cut Out Depth
480
Cut Out Height
49

Cooktop

Material
ceramic glass
Fuel
mixed
Cooking zone type
gas burners, radiant plates
Cooking zone number
5
Double Ring
1
Ceramic Double Zone
1
Ignition
electronic
Safety devices
Pan supports material
cast iron
Flush Mount Installation
Special functions
- precision control

Control Zone

Control Type
knobs with Precision Control
Knobs finishing
soft touch and brushed metal
Controls position
front

Other

Made in
Italy

Electric connection

Total electric absorption (W)
2900
Cable

Gas connection

Total gas absorption (W)
6480
Regulation
G30/G31 - lpg
Replacement injectors
available on request

Accessories

Accessory 1
wok support

Model:

ELIO EN95-567 CG

Overall dimensions (W x D) mm:

900x510
